Try-out Press

  • HOME
  • 제품소개
  • Try-out Press

Fein Blanking Press

용도

금형 제작 후 TRIAL TEST용

시작품의 생산

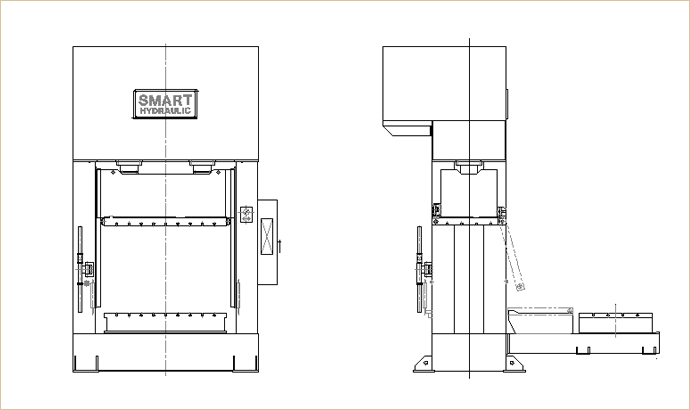

Dimension & Specification

Model No. Capacity (ton) Bolster
size
(mm)		 Day
light
(mm)		 Main
stroke
(mm)		 Speed (mm/sec) Main
motor
(kwxP)
Main / D.C Lifting Moving Pressing Descent /
Ascent		 Moving
ST-400-150 400/150 50 20 2500x1800 1500 1200 10~20 150~200 50~70 55x6
ST-500-200 500/200 60 25 3000x2000 1800 1500 10~20 150~200 50~70 55x6
ST-600-200 600/200 70 30 3000x2000 1800 1500 10~20 150~200 50~70 75x6
ST-800-300 800/300 80 35 3500x2400 2100 1800 10~20 150~200 50~70 90x6
ST-1000-300 1000/300 80 50 4000x2400 2100 1800 8~15 150~200 50~70 90x6
ST-1200-400 1200/400 90 50 4500x2400 2100 1800 7~12 150~200 50~70 110x6
ST-1500-500 1500/500 10 50 5000x2800 2500 2000 7~12 150~200 50~70 132x6
